应变状态理论

基本任务

• 一点的应变状态
• 几何方程和应变协调方程

3-1 位移和应变及其关系

补充：有限变形情形

小变形假设下，不区分变形前后的构型（configuration），认为是一致的。

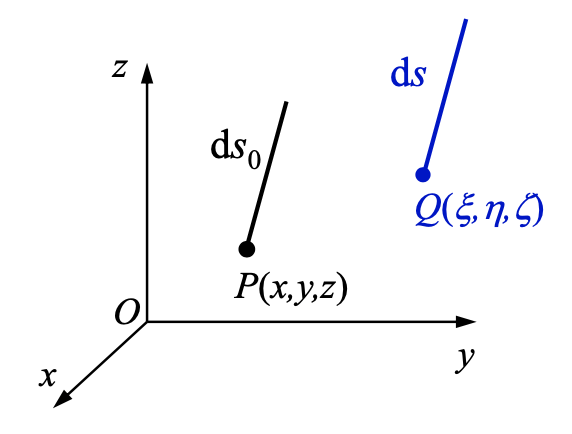

考虑没有小变形假设的情况，点 \(P(x,y,z)\) 变形到 \(Q(\xi, \eta, \zeta).\)

新旧坐标位移关系

\[ \begin{aligned} \xi &= x + u \\ \eta &= y + v \\ \zeta &= z + w \end{aligned} \]

Lagrange 描述

用变形前的坐标 \((x,y,z)\) 描述变形后的坐标 \((\xi, \eta, \zeta).\) 即

\[ \begin{aligned} \xi &= \xi(x,y,z) \\ \eta &= \eta(x,y,z) \\ \zeta &= \zeta(x,y,z) \end{aligned} \]

取微分，

\[ \begin{aligned} \mathrm{d} \xi &= \mathrm{d} x + \mathrm{d} u = \mathrm{d} x + \frac{\partial u}{\partial x} \mathrm{d} x + \frac{\partial u}{\partial y} \mathrm{d} y + \frac{\partial u}{\partial z} \mathrm{d} z \\ \mathrm{d} \eta &= \mathrm{d} y + \mathrm{d} v = \mathrm{d} y + \frac{\partial v}{\partial x} \mathrm{d} x + \frac{\partial v}{\partial y} \mathrm{d} y + \frac{\partial v}{\partial z} \mathrm{d} z \\ \mathrm{d} \zeta &= \mathrm{d} z + \mathrm{d} w = \mathrm{d} z + \frac{\partial w}{\partial x} \mathrm{d} x + \frac{\partial w}{\partial y} \mathrm{d} y + \frac{\partial w}{\partial z} \mathrm{d} z \end{aligned} \]

小线元的长度变化

\[ \begin{aligned} (\mathrm{d} s)^2 - (\mathrm{d} s_0)^2 &= (\mathrm{d} \xi)^2 + (\mathrm{d} \eta)^2 + (\mathrm{d} \zeta)^2 - (\mathrm{d} x)^2 - (\mathrm{d} y)^2 - (\mathrm{d} z)^2 \\ &= 2 \tilde{\varepsilon}_x \, (\mathrm{d} x)^2 + 2 \tilde{\varepsilon}_y \, (\mathrm{d} y)^2 + 2 \tilde{\varepsilon}_z \, (\mathrm{d} z)^2 + 2 \tilde{\gamma}_{xy} \, \mathrm{d} x \mathrm{d} y + 2 \tilde{\gamma}_{yz} \, \mathrm{d} y \mathrm{d} z + 2 \tilde{\gamma}_{zx} \, \mathrm{d} z \mathrm{d} x \end{aligned} \]

其中

\[ \begin{aligned} \tilde{\varepsilon}_x &= \frac{\partial u}{\partial x} + \frac{1}{2} \left[ \left( \frac{\partial u}{\partial x} \right)^2 + \left( \frac{\partial v}{\partial x} \right)^2 + \left( \frac{\partial w}{\partial x} \right)^2 \right] \\ \end{aligned} \]
