Lists, Stacks, and Queues¶

Abstract Data Types (ADT)¶

Definition¶

Data Type = { Objects } \(\cup\) { Operations }

e.g.

int = { 0, 1, 2, 3, ... } \(\cup\) { +, -, *, /, %, ... }

List ADT¶

• Objects: { \(\mathrm{item}_0, \mathrm{item}_1, \ldots, \mathrm{item}_{N-1}\) }
• Operations:
• Find the \(k\)-th item
• Insert an item after¹ the \(k\)-th item
• Delete the \(k\)-th item

Simple Array Implementation¶

array[\(i\)] = \(\mathrm{item}_i\) (Sequential Mapping)

• Find: \(\mathcal{O}(1)\)
• MaxSize has to be estimated
• Insert/Delete: \(\mathcal{O}(N)\), and takes time to move elements

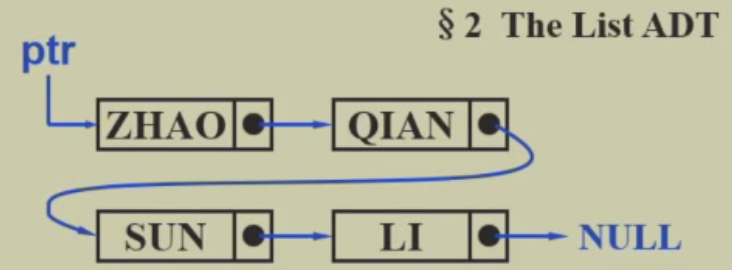

Linked Lists¶

Initialize

typedef struct list_node *list_ptr;
typedef struct list_node {
    char data[4];
    list_ptr next;
};
list_ptr ptr;

To link 'QIAN' and 'ZHAO'

ptr = (list_ptr) malloc(sizeof(struct list_node));
strcpy(ptr->data, "ZHAO");
ptr->next = QIAN->next;
QIAN->next = ptr;

• Insert: \(\mathcal{O}(1)\)
• temp->next = node->next
• node->next = temp（顺序不可颠倒！）

• Delete: \(\mathcal{O}(1)\)
• pre->next = node->next
• free(node)（释放内存，防止内存泄漏）

Doubly Linked Circular Lists¶

找第 \(k\) 个元素时，从头到尾找 找第 \(k-1\) 个元素时，还是从头到尾：有无优化？

typedef struct node *node_ptr;
typedef struct node {
    node_ptr llink;
    element item;
    node_ptr rlink;
};

• 最后一个 node 不是 NULL，而是右指针指向 dummy head node
• dummy head node 的左指针指向最后一个 node

An empty list: 左右指针指向自己的 dummy head node

Two Applications¶

The Polynomial ADT¶

Objects: \(P(x) = a_1 x^{e_1} + a_2 x^{e_2} + \ldots + a_n x^{e_n}\); a set of ordered pairs of \(\langle e_i, a_i \rangle\) is the

• Representation 1：数组

typedef struct{
    int CoeffArray[MaxDegree + 1];
    int HighPower;
} *Polynomial;

系数数组很稀疏

• Representation 2：链表

We represent each term as a node | Coeff | Expon | Next | ->

typedef struct Node *PtrToNode;
typedef PtrToNode Polynomial;
typedef PtrToNode Node;
struct Node {
    int Coeff;
    int Expon;
    PtrToNode Next;
};

Multilists¶

40000 个学生，2500 门课

• Representation 1：数组

int Array[40000][2500];
// Array[i][j] = 1: student i takes course j

矩阵很稀疏

• Representation 2：十字链表

Cursor Implementation of Linked Lists (no pointer)¶

• Features of linked lists:
  • Structure contains data and a pointer to the next structure
  • malloc and free are called to allocate and deallocate memory

初始化二维数组，Next 指向下一个元素

malloc:

p = CursorSpace[0].Next;
CursorSpace[0].Next = CursorSpace[p].Next;

free(p):

CursorSpace[p].Next = CursorSpace[0].Next;
CursorSpace[0].Next = p;

Stack ADT¶

Last-In-First-Out (LIFO): insertions and deletions are made at the top only

• Objects: A finite ordered list with zero or more elements
• Operations:
• Push
• Pop
• Top
• CreateStack
• DisposeStack
• ...

Linked List Implementation¶

Push¶

TempCell->Next = S->Next;
S->Next = TempCell;

Top¶

return S->Next->Element;

Pop¶

FirstCell = S->Next;
S->Next = S->Next->Next;
free(FirstCell);

Array Implementation¶

struct StackRecord {
    int Capacity;
    int TopOfStack; // the top pointer
    /* ++for push, --for pop, -1 for empty stack++ */
    ElementType *Array;
};

Applications¶

Balancing Symbols¶

Check if parentheses (), brackets [], and braces {} are balanced.

Algorithm
{
    Make an empty stack S;
    while (read in a character c)
    {
        if (c is an opening symbol) // 左括号，压栈
            Push(c, S);
        else if (c is a closing symbol) // 右括号
            if (S is empty) // 栈空，不匹配
                return ERROR;exit;
            else
            {
                if (Top(S) is a matching opening symbol) // 栈顶元素匹配
                    Pop(S);
                else
                    return ERROR;exit;
            }
    }
    if (S is not empty) // 栈非空，说明左括号多了
        return ERROR;
}

• \(T(N) = \mathcal{O}(N)\), on-line algorithm

Postfix¶

Postfix Evaluation¶

• Evaluation: \(((a + (b \times c)) - (d / e))\)
• Infix: \(a + b * c - d / e\)
• Prefix: \(- + a * bc / de\)
• Postfix: \(abc * + de / -\)
• aka. Reverse Polish Notation (RPN)
• 方便计算机计算：运算符位置越靠前，优先级越高

Infix to Postfix Conversion¶

e.g. \(a + b * c - d \to a b c * + d -\)

System Stack¶

管理函数调用

graph BT
    A[Return Address]
    B[Stack Frame]
    C[Local Variables]
    D[Return Address]
    E[Old Frame Pointer]
    A --> B --> C --> D --> E
    E --> B

• fp: frame pointer
• sp: stack pointer

malloc 在堆（heap）上分配内存

void PrintList( List L )
{
    if( L != NULL )
    {
        PrintElement( L->Element );
        PrintList( L->Next ); // tail recursion (1)
    }
}

Queue ADT¶

First-In-First-Out (FIFO): insertions are made at the rear and deletions are made at the front

• Objects: A finite ordered list with zero or more elements
• Operations:
• Enqueue
• Dequeue
• Front
• IsEmpty
• CreateQueue
• DisposeQueue
• ...

Linked List Implementation¶

trivial

Array Implementation¶

struct QueueRecord {
    int Capacity;
    int Front; // the front pointer
    int Rear; // the rear pointer
    int Size; // the number of elements, not necessary
    ElementType *Array;
};
