Tree¶

单选题¶

2-3

Given the shape of a binary tree shown by the figure below. If its inorder traversal sequence is { E, A, D, B, F, H, C, G }, then the node on the same level of C must be:
- A. D and G
- B. E
- C. B
- D. A and H

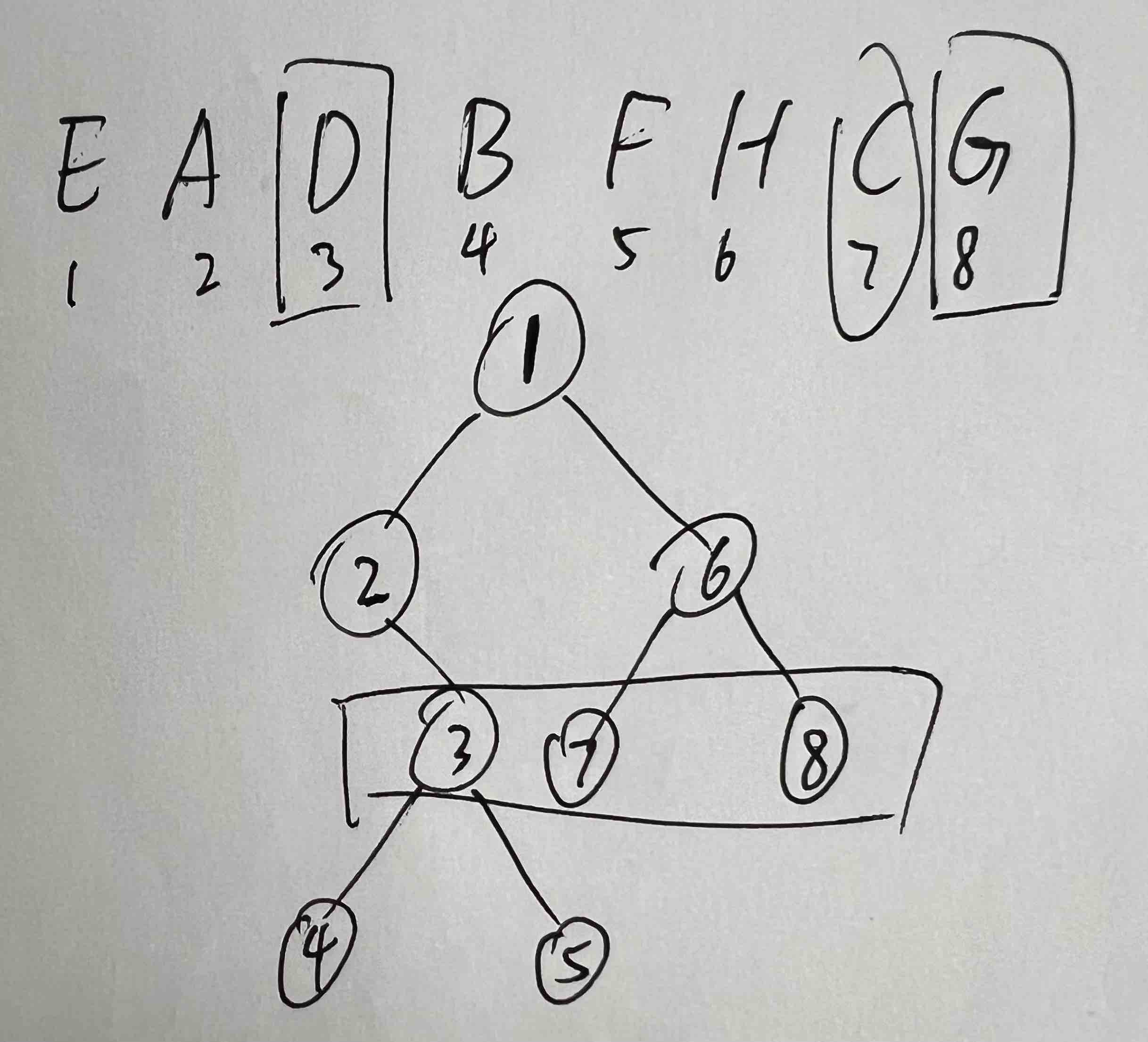

Solution 2-3

2-4

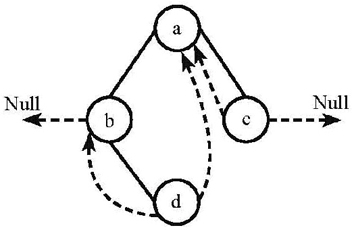

Among the following threaded binary trees (the threads are represented by dotted curves), which one is the postorder threaded tree?
- A.
- B.
- C.
- D.
Solution 2-4

线索二叉树的链接规则是：
1. 如果 Tree->Left 为空，则指向中序遍历序列的前驱；
2. 如果 Tree->Right 为空，则指向中序遍历序列的后继。
图中所示二叉树的中序遍历为 a b d c.
- A 选项。c 的左指针应指向 d，而不是 b，错误。
- B 选项。b 的左指针应指向 a，而不是 d，错误。
- C 选项。错误同 B。
- D 选项。正确。

函数题¶

6-1 Isomorphic

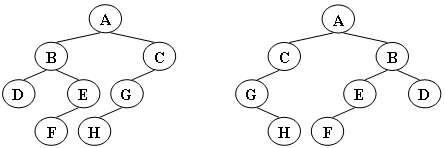

Two trees, T1 and T2, are isomorphic if T1 can be transformed into T2 by swapping left and right children of (some of the) nodes in T1. For instance, the two trees in Figure 1 are isomorphic because they are the same if the children of A, B, and G, but not the other nodes, are swapped.

Give a polynomial time algorithm to decide if two trees are isomorphic.

Figure 1

Format of functions:

int Isomorphic( Tree T1, Tree T2 );

where Tree is defined as the following:

typedef struct TreeNode *Tree;
struct TreeNode {
    ElementType Element;
    Tree  Left;
    Tree  Right;
};

The function is supposed to return 1 if T1 and T2 are indeed isomorphic, or 0 if not.

Sample program of judge:

#include <stdio.h>
#include <stdlib.h>

typedef char ElementType;

typedef struct TreeNode *Tree;
struct TreeNode {
    ElementType Element;
    Tree  Left;
    Tree  Right;
};

Tree BuildTree(); /* details omitted */

int Isomorphic( Tree T1, Tree T2 );

int main()
{
    Tree T1, T2;
    T1 = BuildTree();
    T2 = BuildTree();
    printf(“%d\n”, Isomorphic(T1, T2));
    return 0;
}

/* Your function will be put here */

Sample Output 1 (for the trees shown in Figure 1):

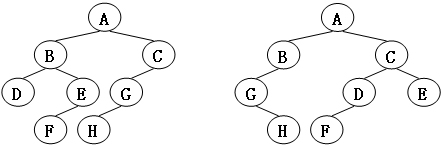

Sample Output 2 (for the trees shown in Figure 2):

Figure 2

Solution 6-1

int Isomorphic( Tree T1, Tree T2 )
{
    if (T1 == NULL && T2 == NULL)
        return 1;

    if (T1 == NULL || T2 == NULL)
        return 0;

    if (T1->Element != T2->Element)
        return 0;

    if ( Isomorphic(T1->Left, T2->Left) && Isomorphic(T1->Right, T2->Right) )
        return 1;

    if ( Isomorphic(T1->Left, T2->Right) && Isomorphic(T1->Right, T2->Left) )
        return 1;

    return 0;
}

编程题¶

7-1 ZigZagging on a Tree

Suppose that all the keys in a binary tree are distinct positive integers. A unique binary tree can be determined by a given pair of postorder and inorder traversal sequences. And it is a simple standard routine to print the numbers in level-order. However, if you think the problem is too simple, then you are too naive. This time you are supposed to print the numbers in "zigzagging order" -- that is, starting from the root, print the numbers level-by-level, alternating between left to right and right to left. For example, for the following tree you must output: 1 11 5 8 17 12 20 15.

Input Specification:

Each input file contains one test case. For each case, the first line gives a positive integer N (\(\leq 30\)), the total number of nodes in the binary tree. The second line gives the inorder sequence and the third line gives the postorder sequence. All the numbers in a line are separated by a space.

Output Specification:

For each test case, print the zigzagging sequence of the tree in a line. All the numbers in a line must be separated by exactly one space, and there must be no extra space at the end of the line.

Sample Input:

8
12 11 20 17 1 15 8 5
12 20 17 11 15 8 5 1

Sample Output:

1 11 5 8 17 12 20 15

Solution 7-1

#include <stdio.h>
#include <stdlib.h>
#include <stdbool.h>

typedef struct TreeNode {
    int val;
    struct TreeNode* left;
    struct TreeNode* right;
} TreeNode;

// 创建新节点
TreeNode* newNode(int val) {
    TreeNode* node = (TreeNode*)malloc(sizeof(TreeNode));
    node->val = val;
    node->left = NULL;
    node->right = NULL;
    return node;
}

// 在 inorder[start..end] 中查找数值 val 的下标
int findIndex(int arr[], int start, int end, int val) {
    for (int i = start; i <= end; i++) {
        if (arr[i] == val) {
            return i;
        }
    }
    return -1;
}

// 递归函数：根据中序和后序子序列构建二叉树
TreeNode* buildTreeHelper(int inorder[], int postorder[],
                        int inStart, int inEnd,
                        int postStart, int postEnd) {
    if (inStart > inEnd || postStart > postEnd) {
        return NULL;
    }
    // 后序序列的最后一个元素即为当前子树根节点
    int rootVal = postorder[postEnd];
    TreeNode* root = newNode(rootVal);

    // 在中序序列中找到根节点位置
    int rootIndex = findIndex(inorder, inStart, inEnd, rootVal);

    // 左子树的节点数量
    int leftCount = rootIndex - inStart;

    // 递归构造左子树
    root->left = buildTreeHelper(inorder, postorder,
                                inStart, rootIndex - 1,
                                postStart, postStart + leftCount - 1);

    // 递归构造右子树
    root->right = buildTreeHelper(inorder, postorder,
                                rootIndex + 1, inEnd,
                                postStart + leftCount, postEnd - 1);

    return root;
}

// 构造整棵树
TreeNode* buildTree(int inorder[], int postorder[], int n) {
    return buildTreeHelper(inorder, postorder, 0, n - 1, 0, n - 1);
}

void zigzagTraversal(TreeNode* root) {
    if (!root) return;

    // 用一个简单的数组队列实现 BFS（N ≤ 30，这里数组大小可适当放大）
    TreeNode* queue[100];
    int front = 0, rear = 0;
    queue[rear++] = root;

    // 用 level 来记录当前层，从 0 开始
    int level = 0;

    // 控制输出时避免行末多余空格
    bool firstPrint = true;

    while (front < rear) {
        int size = rear - front;   // 当前层节点数
        int levelValues[100];      // 暂存本层所有节点的值

        // 先把本层节点都出队，同时将下一层的节点入队
        for (int i = 0; i < size; i++) {
            TreeNode* node = queue[front++];
            levelValues[i] = node->val;
            if (node->left) {
                queue[rear++] = node->left;
            }
            if (node->right) {
                queue[rear++] = node->right;
            }
        }

        if (level < 2) {
            // 前两层都从左到右
            for (int i = 0; i < size; i++) {
                if (!firstPrint) printf(" ");
                printf("%d", levelValues[i]);
                firstPrint = false;
            }
        } else {

            if (level % 2 == 0) {
                // 偶数层(2,4,6...)：右到左
                for (int i = size - 1; i >= 0; i--) {
                    if (!firstPrint) printf(" ");
                    printf("%d", levelValues[i]);
                    firstPrint = false;
                }
            } else {
                // 奇数层(3,5,7...)：左到右
                for (int i = 0; i < size; i++) {
                    if (!firstPrint) printf(" ");
                    printf("%d", levelValues[i]);
                    firstPrint = false;
                }
            }
        }

        level++;
    }
    printf("\n");
}

int main() {
    int N;
    scanf("%d", &N);

    int inorder[40], postorder[40];
    for (int i = 0; i < N; i++) {
        scanf("%d", &inorder[i]);
    }
    for (int i = 0; i < N; i++) {
        scanf("%d", &postorder[i]);
    }

    TreeNode* root = buildTree(inorder, postorder, N);
    zigzagTraversal(root);

    return 0;
}
