CPU Parallel Programming Framework¶

OpenMP¶

Example codes directory: /river/hpc101/2025/openmp-examples

Hello OpenMP

#include <stdio.h>
#include <omp.h>
int main() {
printf("Welcome to OpenMP!\n");
#pragma omp parallel
{
int ID = omp_get_thread_num();
printf("hello(%d)", ID);
printf("world(%d)\n", ID);
}
printf("Bye!");
return 0;
}

compile:

gcc 1_hello_openmp.c -o 1_hello_openmp -fopenmp

fopenmp 告诉编译器并行

Fork-Join Model¶

OpenMP directives and constructs¶

An OpenMP construct is a formation for which the directive is executable.

#pragma omp parallel // <--\--- Directive
{                    //    |
printf("Do sth.");   //    | Construct
}                    // ---/

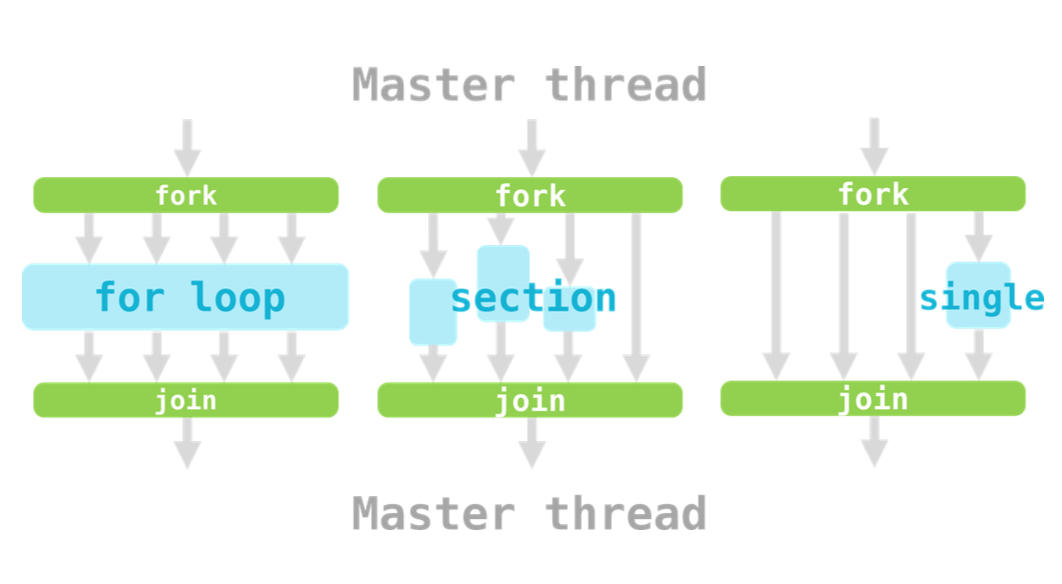

Work-distribution constructs¶

single
section
for

Overhead

any combination of excess or indirect computation time, memory, bandwidth, or other resources that are required to perform a specific task.

Loop Schedule¶

静态调度 schedule(static)
- 提前规定好，OpenMP 就不管了
- 但是会导致任务不均衡
动态调度 schedule(dynamic, 1)
- 让 CPU 空闲时间减少，执行完立马领下一个任务
- OpenMP 维护的 overhead 增加
- 1 代表粒度，单个任务

Nested `for` Loop¶

# pragma omp parallel for collapse
for (int i = 0; i < n; i++) {
    for (int j = 0; j < n; j++) {
        c[i][j] = a[i][j] + b[i][j];
    }
}

collapse(2): 让 OpenMP 知道有两层循环

Shared Data and Data Hazards¶

Data Hazards in Summation

#include <stdio.h>
#include "omp.h"
int main() {
    int a[100];
    int sum = 0;
    // initialize
    for (int i = 0; i < 100; i++) a[i] = i + 1;
    // Sum up from 1 to 100
    #pragma omp parallel for
    for (int i = 0; i < 100; i++) {
        sum += a[i];
    }
    printf("Sum = %d\n", sum);
}

每次输出的结果不确定！且不是 5050！

不同线程同时访问变量

Scope and Data Hazard¶

Data hazards happen when operating shared data

把 sum 变量设置为 private 解决

Resolve Data Hazard¶

Critical Section¶

同一时间只能有一个线程进入临界区
一个临界区可以有多个 statements
#pragma omp critical

比较慢

Atomic Operation¶

Atomic operation cannot be separated
只能作用于一个操作
操作类型很有限（加减乘除，位操作）

Reduction¶

最常用到的方法

#pragma omp parallel for reduction(+:sum)
    for (int i = 0; i < 100; i++) {
        sum += a[i];
    }
    printf("Sum = %d\n", sum);

Comparison

Critical Region: based on locking
Atomic Operation: based on hardware atomic operations
Reduction: only synchronize in the end

Example: GEMM

General Matrix Multiplication (GEMM)

// General Matrix Multiplication (GEMM)
for (int i = 0; i < N; i++) {
    for (int j = 0; j < N; j++) {
        c[i][j] = 0;
        for (int k = 0; k < N; k++) {
            c[i][j] += a[i][k] * b[k][j];
        }
    }
}

加上

#pragma omp parallel for collapse(3) reduction(+ : c)

Pitfalls & Fallacies¶

CPU 1 修改 Cache 后，CPU 2 再访问同一个 cache 区间的数据就失效了；反之亦然

MESI

Takeaway

Where: Profiling
Why: Analyze data dependency
How: Analysis and Skills
Sub-task Distribution
Scheduling Strategy
Cache and Locality 注意 cacheline 的长度
Hardware Environment
Get Down to Work: Testing

Tips

Ensure correctness while parallelizing
Be aware of overhead
Check more details in official documents

MPI¶

把系统里调用的 message passing 封装好

MPI 有很多实现

OpenMPI
Intel-MPI
MPICH
HPMI (Hyper-MPI, Huawei)
...

Hello MPI World

#include <mpi.h>
#include <stdio.h>
int main(int argc, char** argv) {
    MPI_Init(&argc, &argv);
    int world_size;
    MPI_Comm_size(MPI_COMM_WORLD, &world_size);
    int world_rank;
    MPI_Comm_rank(MPI_COMM_WORLD, &world_rank);
    char processor_name[MPI_MAX_PROCESSOR_NAME];
    int name_len;
    MPI_Get_processor_name(processor_name, &name_len);
    printf("Hello world from processor %s, rank %d out of %d processors\n"
    , processor_name, world_rank, world_size);
    MPI_Finalize();
    return 0;
}

记住 Init 和 Finalize

Basic Concepts¶

Communicator¶

MPI_COMM_WORLD：所有进程
MPI_COMM_SPLIT：划分成小的域，类似地图划分成国家

Blocking vs. Non-blocking¶

阻塞型：干完了才能干下一个
非阻塞型：好好好知道了

Order¶

Messages are non-overtaking.

顺序是保证的

Fairness¶

MPI 不保证通讯公平性。可能导致 starvation.

P2P Communication¶

MPI_Send
MPI_Recv

常见错误：死锁

MPI_Ssend 阻塞型

MPI_Sendrecv
MPI_Isend

Synchronization¶

MPI_TEST
MPI_WAIT

Collective Communication¶

Broadcast¶

MPI_Bcast
MPI_Barrier
